Description

FEATURES & BENEFITS :

Available in coiled form for use at reduced spaces with maneuverability.
Available in small coil dia for better coil retention & retractability.
Highly flexible & light weight. Corrosion, chemical & kink resistant.
Excellent tensile strength for enhanced performance & durability.
Good vibration, impact, radiation & abrasion resistant.
Good resistance to oils, greases & other tough liquids.
UV-resistant.  Silicon-free.
100% virgin PU material & Recoiled in different lengths.
Available in different colors for specific applications.



TECHNICAL SPECIFICATIONS :

Compatible Fluids  :-  Compressed Air,  Industrial fluids.
Pressure Range  :-  Vacuum to 12 bar   ( upto  175 PSI )
Temperature Range  :   -20 to +80° C  ( -4  to  +176° F )
Materials   :-  100% Virgin PU Material & Recoiled in Different Lengths.

Hardness   :-  98 shore A
Available Tube OD Sizes  :-  4mm, 6mm, 8mm, 10mm, 14mm & 16mm
Standard Coil Colors  :-  Blue, Yellow, Black, Transparent ( Clear ), Orange, etc.  ( Other Colors on Request )
Standard Coil Lengths   :-  5 Mtr., 10 Mtr., 15 Mtr.  ( Other Lengths on Request )

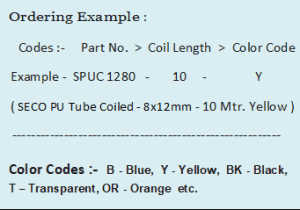

MODELS & SIZES AVAILABLE  :

 Part No. I.D. x O.D. ( mm ) Standard Coil Lengths ( Mtr. )
SPUC 0425 2.5 x 4 5, 10 & 15 Mtrs.
SPUC 0640  4 x 6 5, 10 & 15 Mtrs.
SPUC 0850  5 x 8 5, 10 & 15 Mtrs.
SPUC 0855# 5.5 x 8 5, 10 & 15 Mtrs.
SPUC 1065 6.5 x 10 5, 10 & 15 Mtrs.
SPUC 1070#    7 x 10 5, 10 & 15 Mtrs.
SPUC 1280    8 x 12 5, 10 & 15 Mtrs.
SPUC 1410  10 x 14 5, 10 & 15 Mtrs.
SPUC 1612#  12 x 16 5, 10 & 15 Mtrs.
SPUC 1611  11 x 16 5, 10 & 15 Mtrs.

#  Non-standard sizes. Please check for availability while ordering.

Please Consult us for other specific coil length requirements.



APPLICATIONS  :

Automobiles, Pneumatic tools, Robotics, Motion control, Pneumatic piping, Shipping, Printing & Packaging, Agriculture, Cement & Chemical plants, Laboratories, Instrumentation, Lubrication systems, Painting systems, Vacuum etc.
